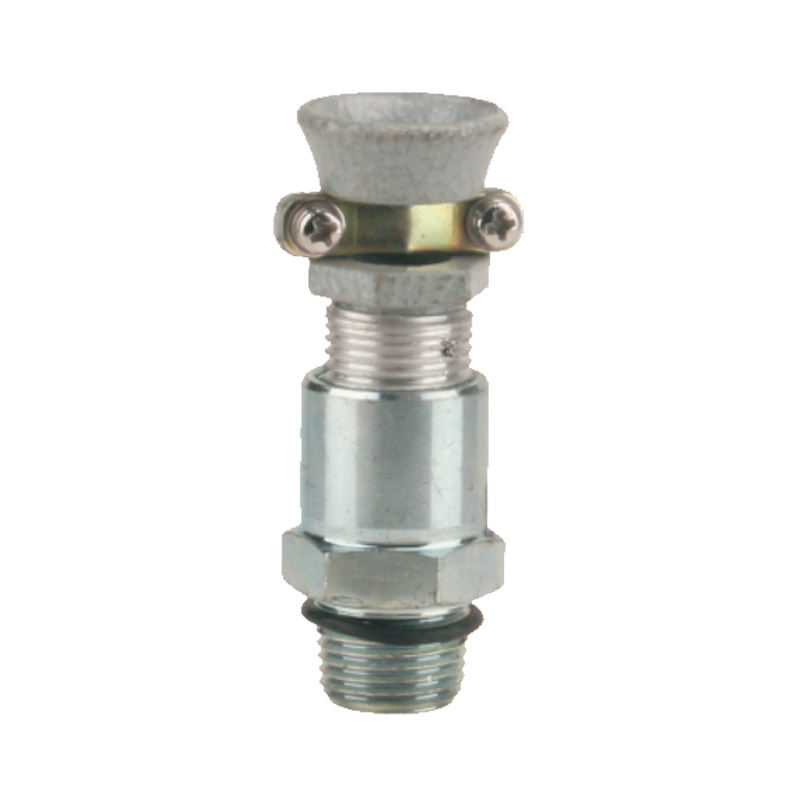

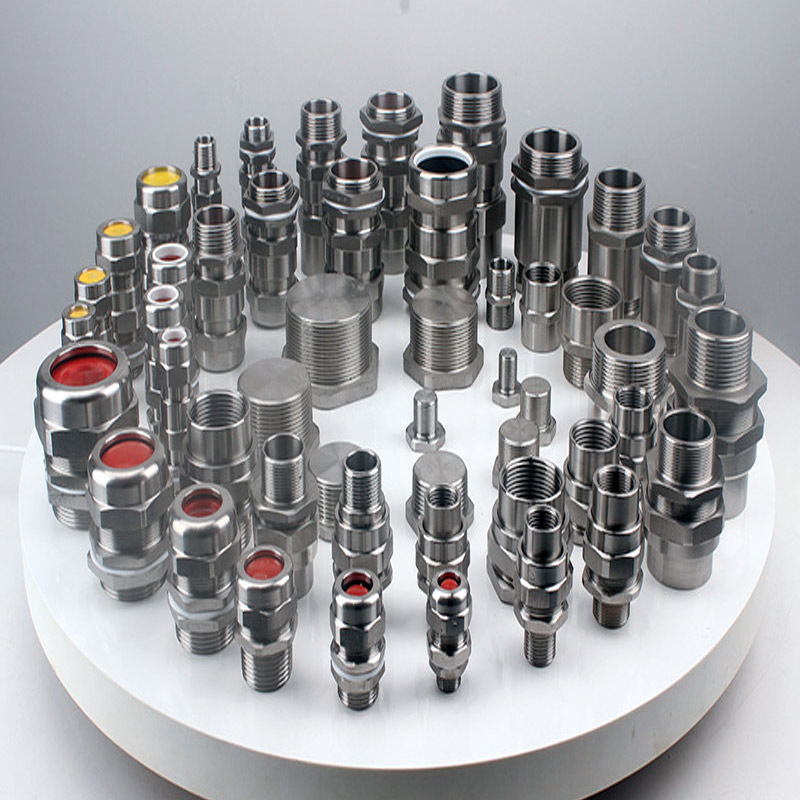

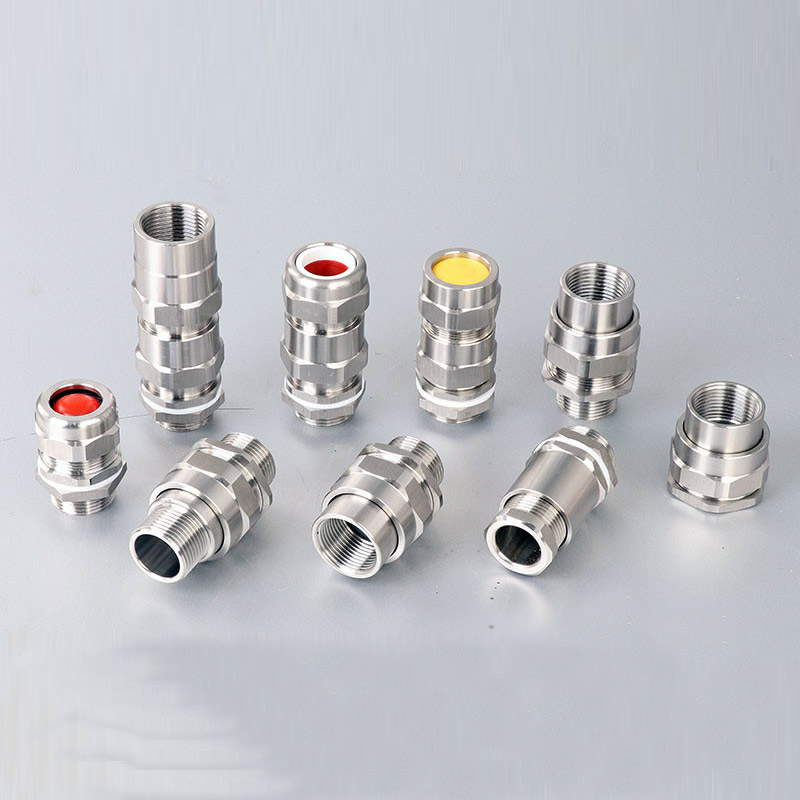

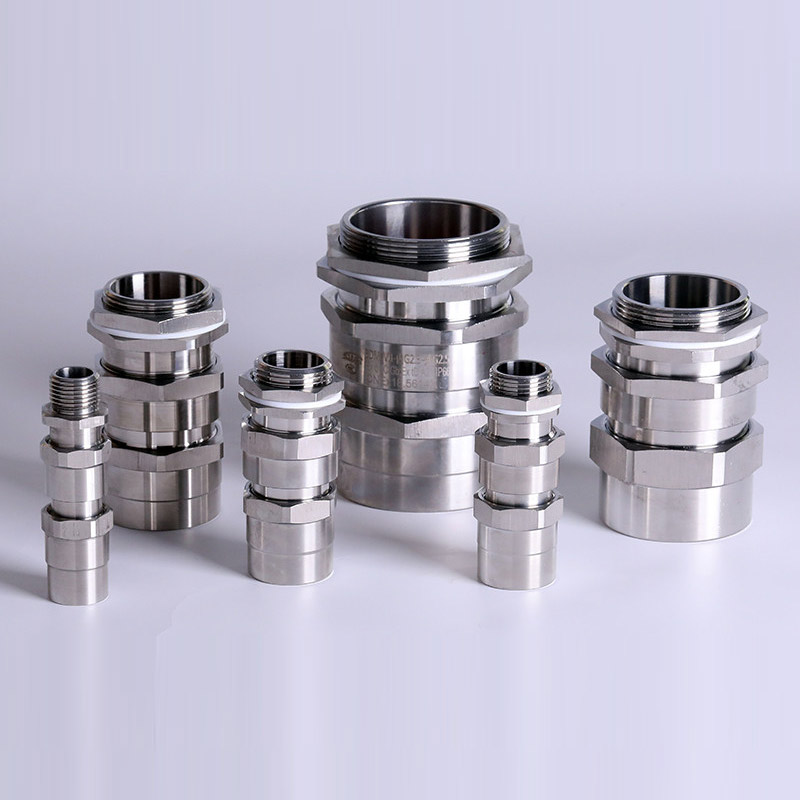

BDM-II EXPLOSION-PROOF CABLE CLAMPING AND SEALING JOINT

Product ID：Explosion proof pipe fittings
Whatsapp & Wechat：+8613868719385
Phone: +8613868719385
Tel: +86 577 27880251
E-mail: info@dlxex.com
FEEDBACK

BDM – Type parameters and profiles

Made of high-quality carbon steel, brass or stainless steel, the displacement cable clamping device has strong waterproof performance, and the stuffing box has a single-layer sealing structure, which is suitable for Armoured cable entry.

Applicable Scope

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;

2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;

3. Suitable for IIA, IIB and IIC explosive gas environment;

4. Applicable to T1-T6 temperature group;

5. It is widely used for clamping and sealing cables in dangerous environment places such as petroleum exploitation, oil refining, chemical industry, gas station, etc.

Thread size			Maximum outer diameter of cable (outgoing line)	Cable outer diameter (incoming line)	Thread length	Length (L)	Opposite edge/maximum outer diameter S（ φ）
Imperial	American	Metric
G 1/2	NPT 1/2	M20x1.5	12	9~14	15	79	27/30
G 3/4S	NPT 3/4S	M25x1.5S	18			80	34/37
G 3/4	NPT 3/4	M25x1.5		14~19
G 1S	NPT 1S	M32x1.5S	21	14~20	17	81	38/42
G 1	NPT 1	M32x1.5		19~24			28/42
G 1 1/4	NPT 1 1/4	M40x1.5	27	25~30			48/54
G 1 1/2S	NPT 1 1/2S	M50x1.5S	37	31~36		84	55/61
G 1 1/2	NPT 1 1/2	M50x1.5		35~39
G 2S	NPT 2S	M63x1.5S	46	39~45	19	87	68/74
G 2	NPT 2	M63x1.5		42~50
G 2 1/2S	NPT 2 1/2S	M75x1.5S	57	48~56	24	102	85/94
G 2 1/2	NPT 2 1/2	M75x1.5		56~65
G 3S	NPT 3S	M90x1.5S	72	51~65	26	105	100/110
G 3	NPT 3	M90x1.5		64~75
G 4S	NPT 4S	M115x2S	90	74~84	28	110	125/135
G 4	NPT 4	M115x2		87~98
